XYZL Series Extruding Cutting Granulating Machine
Details
JLZ-80 Lat extruding granulatorGeneral applications
The equally mixed soft material are forced to pass the sieve under the extrusion force of grinding impeller. Then the uniformed length column grain. Will be obtained by the cutting force of outside scrape impellers.
Features of equipment
Reasonable structure, nice appearance.
More obvious functions to material of high viscosity.

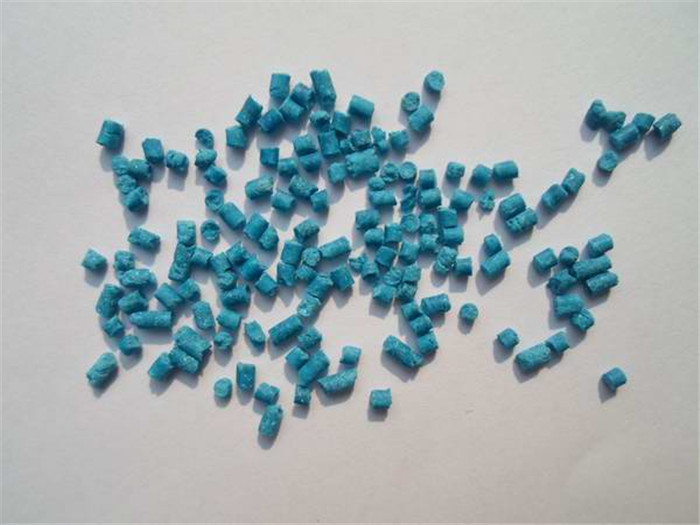

Length of grains is uniform.
The size of grain can be adjusted by changing the size of sieve.
Technical Data
|
Specification Item |
Size of grinding knife(mm) |
Diameter of grains(mm) |
Productivity(kg/h) |
Power of electrical(kw) |
Weight(kg) |
Overall dimensions(LxW xH)(mm) |
|
JZL-80 |
Ø 80 |
Ø 0.8～2.5 |
60～200 |
0.18 |
25 |
450 x 250 x 450 |
|
XYZL-300 |
Ø 270 |
Ø 0.8～2.5 |
100～300 |
5.5 |
380 |
1000x 570 x 1160 |
|
XYZL-350 |
Ø 350 |
Ø 0.8～2.5 |
300～500 |
11 |
700 |
1100x 670 x 1260 |
